Never has so
much performance been packed into such a small package. The

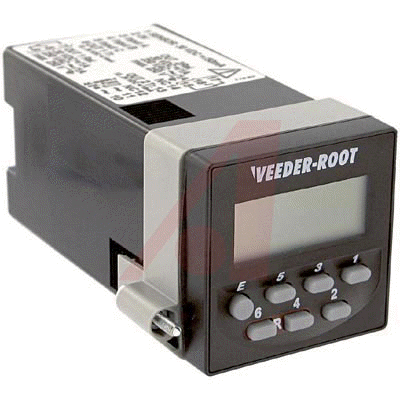

Veeder Root Brand C346 is a full featured preset counter that
can be field configured to perform as a rate meter or an
elapsed time counter, both with outputs. Chose an LCD display
or the industry's only 6 digit, 48mm x 48mm preset counter,
with an LED display. Functionality and simplicity go hand in
hand – all models can be configured through the front panel
to accept inputs from dry contracts, encoders, or
photoelectric or proximity switches with either PNP or NPN
outputs. Its input can be easily scaled using a multiplier
constant, allowing display in Feet, Meters, Gallons, etc.
Important parameters such as the presets and the prescale
value can be called up with direct access keys. Preset values
can be quickly entered or changed using a simple button per
digit method.
Choice of LED or LCD display to meet any viewing requirement
Scale Function enables display of Engineering Units (Length,
Volume)
Button per digit setting and direct access keys simplify setup
and operation
Add/Subtract, Add/Add, and quadrature input modes
Accepts input signals from a variety of sources: Dry Contact,
PNP or NPN Sensors, Encoders
Can be field configured to perform rate metering or timing
functions
Relay and transistor outputs programmable for latching or
timed operation
Reset via Front Panel, Remote Input or Automatically
12 - 24 VDC auxiliary supply for powering input devices
NEMA 4/IP65 rated front panel for use in washdown environments
