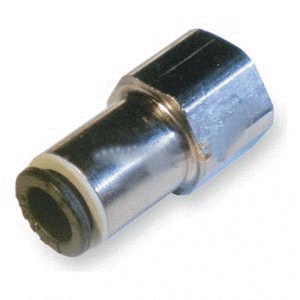

3114 Series Female Stud Fitting

In line connection of tubing with a male thread.
Tightened on the top end of the fitting with a flat spanner or socket wrench.

• Compact

• Solid construction, aesthetic and unobtrusive for a better connection

• Full air flow

• individual unit quality control and dating in order to guarantee quality and traceability

• RoHS and ISO 14743

Technical Specifications

Maximum working pressure	20 bar 2 MPa 290 psi
Working temperature	-20 to 80 °C -4 to 176 °F 253 to 353 °K
Vacuum capability	755 mm Hg
Body	engineering grade polymer
O-rings	nitrile
Gripping ring	stainless steel

Click Here For Dimensions

________________________________________________________________________

Part No.	Size	Price (Pack of 10)	Click  To Buy
31140410	4mm O.D. X 1/8 BSPP	$39.00
31140413	4mm O.D X 1/4 BSPP	$52.50
31140419	4mm O.D X M5X0.8	$66.00
31140610	6mm O.D X 1/8 BSPP	$38.50
31140613	6mm O.D X 1/4 BSPP	$43.00
31140810	8mm O.D X 1/8 BSPP	$49.00
31140813	8mm O.D X 1/4 BSPP	$46.50
31140817	8mm O.D X 3/8 BSPP	$56.50
31141013	10mm O.D X 1/4 BSPP	$68.00
31141017	10mm O.D X 3/8 BSPP	$75.50
31141021	10mm O.D X 1/2 BSPP	$78.50
31141217	12mm O.D X 3/8 BSPP	$95.50
31141221	12mm O.D X 1/2 BSPP	$119.50
