Legris Fittings

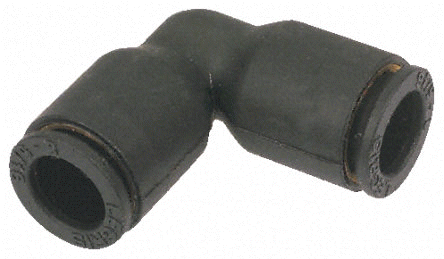

3102 Series Equal and Unequal Elbows

Connection at a 90° angle of 2 tubes of equal or different diameters. Prevents constriction of tube inner diameter.
  • Solid construction, compact, aesthetic and unobtrusive for better connection
  • Full air flow
  • Individual unit quality control and dating in order to guarantee quality and traceability
  • RoHS and ISO 14743

Technical Specifications

Maximum working pressure 20 bar
2 MPa
290 psi
Working temperature -20 to 80 °C
-4 to 176 °F
253 to 353 °K
Vacuum capability 755 mm Hg
Body engineering grade polymer
'O'-rings nitrile
Gripping ring stainless steel

Click Here For Dimensions

________________________________________________________________________

Part No. Size Price
(Pack of 10)		 Click
 To Buy
31020400 4mm X 4mm / 5/32" X 5/32"  $24.50
31020600 6mm O.D. X 6mm O.D. $29.00
31020800 8mm X 8mm / 5/16" X 5/16" $33.00
31021000 10mm O.D. X 10mm O.D. $65.50
31021200 12mm O.D. X 12m O.D.  $82.00
31025600 1/4" O.D. X 1/4" O.D. $27.00
31026000 3/8" O.D. X 3/8" O.D. $43.70
31026200 1/2" O.D. X 1/2" O.D. $58.50
