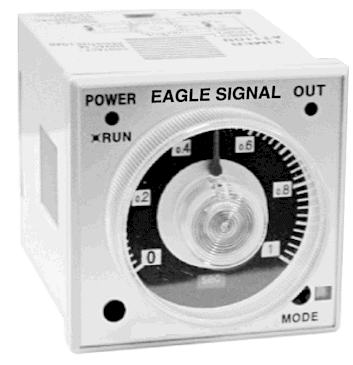

A unique
combination of versatility and simplicity make the Eagle
Signal brand B866 the premiere low cost timing solution.
Housed in a compact 1/16 DIN package, changing the set time is
as simple as turning a dial. Selectable time ranges provide
preset times ranging from 0.06 seconds to 10 hours. The B866
is also field configurable to operate in On-Delay, Off-Delay,
Interval, or Repeat Cycle timing modes.
A unique
On-Delay/Interval model lets the B866 perform two timing
functions in one compact unit. In addition to working as an
On-Delay timer, an independent output interval time is
provided. The output interval
can be set to one of eight time values through DIP switches located
on the side of the unit.
An industry
standard 11 pin socket connection simplifies wiring and makes
replacing existing units quick and easy. The unit can be DIN
rail mounted, or with optional hardware, panel mounted.
Multiple time ranges allow settings from 0.06 seconds to 10
hours
Field selectable for operation in On-Delay, Off-Delay*,
Interval, or Repeat Cycle modes
Universal power supply accepts 24 - 240 VAC or 24 VDC
Meets IEC 801 level 4 noise immunity standards
Unique On-Delay/Interval model lets one unit do the work of
two in many applications
Industry standard socket connection
Front panel or DIN rail mounting
Flexible start and reset input signals
UL, CUL recognized, CE compliant
IP54 rated front panel
|
