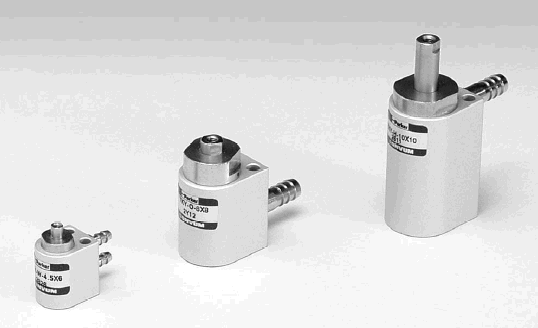

Mini Cylinders can meet your requirements for clamping, gripping, stopping, pressing, etc., in applications where space is a premium. Mini cylinders have a hose barb fitting installed in the rod end of the cylinder, standard female rod thread and two through holes for ease of mounting, no brackets required.

SPECIFICATIONS:

• TKY-H Series, Spring Extended Cylinder

• TKY-O Series, Spring Retracted Cylinder

• TKY-W Series, Double Acting Cylinder

• Bore Sizes: 4.5mm to 10mm

• Stoke: 3mm to 10mm

• Maximum Operating Pressure: 87 PSI

• Ambient Temperature: 32° to 140°F (0° to 60°C)

  FEATURES:

• Space saving design

• Body has two through holes for mounting, no brackets needed

• Female rod thread

• Hose barb fitting included
